Pump or gravity fed, the highest performances for the most demanding customers
High efficiency components
Achieve the top performances and non-stop production

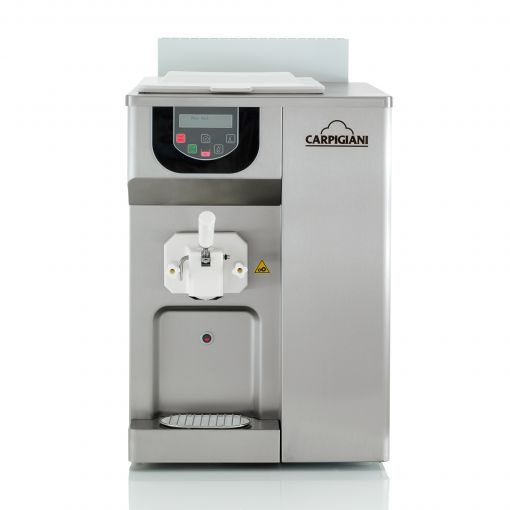

New charming look
Introduce a touch of class with the new stainless steel front panel
Overrun and consistency control
Different consistency control settings for various mix types and easy adjustable overrun
Optional configurations
Self-pasteurization
With our self-pasteurization system the machine can be cleaned and disassembled only 9 times per year
Teorema Remote Control
It gives very important info about the machine, it facilitates the service system and helps the cleaning schedule

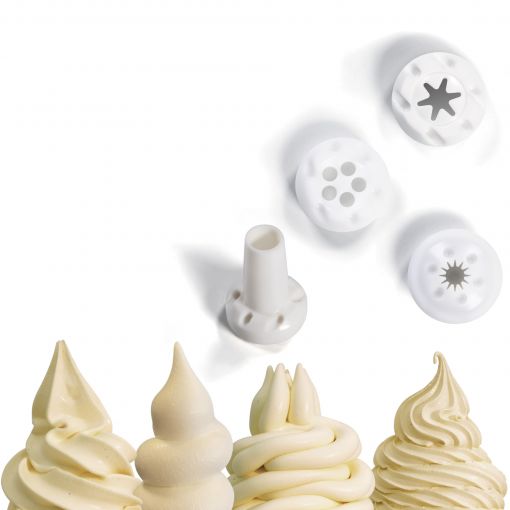

Single portions dispensing head
With interchangeable nozzles to make single portions and delights
Self closing device
The dispensers close automatically stopping the flow of ice cream, eliminating any waste and preventing mess
Only You
Customize your machine with your colours and logo
Wash Kit
Optional tap above the tank to facilitate the cleaning operations
Features & Benefits
Stainless steel pressurized gear pump in Advanced Thermoplastic Polymer (P model)
The pump ensures the best ice cream texture, quality and high overrun, adjustable from 40% to 80%
Independent pump transmissions (P model)
Help to extend the pump and gears life and allow flexibility and maximum performance
Gravity fed system (G model)
Control valves naturally add air to the mix producing a firm and dry ice cream having an overrun up to 40%
Tank agitator
Prevent product stratification and help to reduce foam by maintaining a fluid consistency
Tank rubber lid
Light and handy. It facilitates the cleaning and filling operations
2E-RSI high efficiency beater (P version)
Interchangeable plastic scrapers and shaft for a soft, creamy gelato
High efficiency beater in POM (G version)
Single piece for a dry, compact gelato
Adjustable ice cream flow
Adjustable product flow to meet your specific dispensing speed and volume requirements
Direct expansion cooling cylinders
Optimizes refrigeration efficiency for fast freeze downtime, less waste of product ensuring higher quality and energy saving
Defrost system
Possibility to heat the cylinders to simplify the cleaning procedure
Rear panel chimney (air cooled version)
Allows to optimize space and to place one machine beside the other
| Technical Characteristics | |
|---|---|
| flavour | 1 |
| Mix Delivery System | Pump or Gravity |
| Cylinder Capacity | |
| lt | 1,75 |
| Tank Capacity | |
| lt | 12 lt for Pump model; 18 lt for Gravity model. |
| Hourly production | |
| 75 gr portions | 350 for the Pump model; 300 for the Gravity model. Note that production capacity depends on the mix used and the room temperature. |
| Electrical | |
| Cooling System | Air, water optional |
| Hz | 50* |
| Ph | 3* |
| Volt | 400* |
| Fuse Size A | 10 |
| Rated Power Input kW | 2,9 |
| Refrigerant | |
| Refrigerant | R452; alternative solutions available. |
| Dimensions | |
| Net Weight kg | 140 kg for Pump model; 130 kg for Gravity model. |
| Air-cooled version | W x D x H cm | 50,5 x 75,5 x 83 |
| Note | |
| Note | * other voltages and cycles available upon request. 241 Steel is produced by Carpigiani with Quality System UNI EN ISO 9001. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary. |
