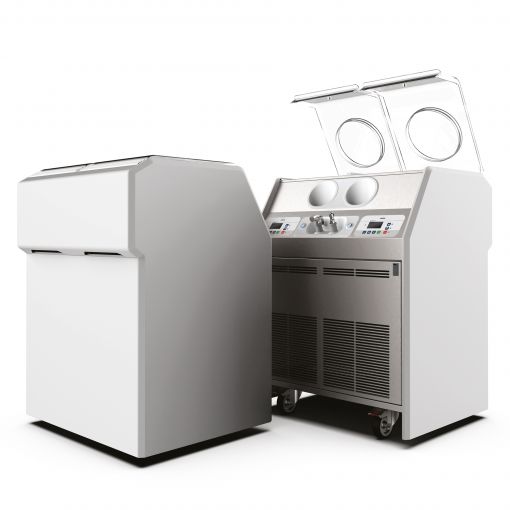

Synthesis 2

Innovative system of modular units to produce and store Gelato in front of your customers

Synthesis 2: The innovative system of modular units to fully satisfy your needs. Each module consists of two cylinders. Every module independently produces and stores gelato. Furthermore, each cylinder has its own consistency and storage temperature settings to best produce every single flavor.

Create your shop by combining the vertical and horizontal Synthesis 2 modules

Performance and Quality

3 simple steps to make your freshly made artisan Gelato

Static Storage

Hard-O-Tronic®

Independent refrigeration system and user interface

Beater

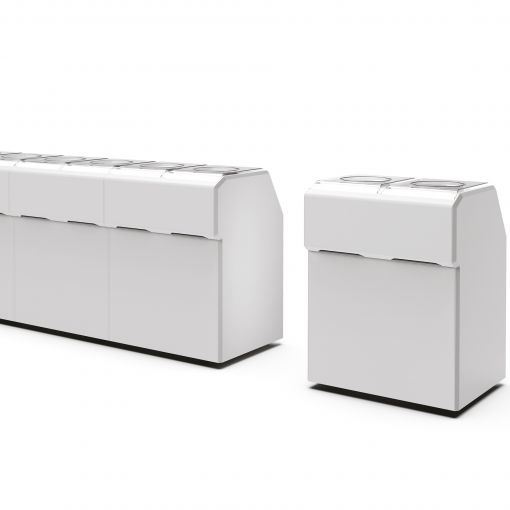

Modular Units

Advanced refill

Synthesis 2 is available in two different models to satisfy any space requirements: horizontal and vertical.

Convenience

The Thermoplastic Lid is ergonomic and light.

The lid is also designed to stay open and give the optimal amount of space to the operator.

Refrigerated scooper holder with separate compartments

LCD display

Wheels

Scan the QR Code on the front of the machine to access the most up to date equipment information: Instruction Manual, Carpi Care kit & Carpi Clean kit

Savings

Energy savings thanks to the high efficiency electric motors and high performance capacitors.

Safety

Teorema

Ergonomic design

Autodefrost

Hygiene

Heated cleaning

Dry Clean

Delayed cleaning program

Wash kit

Both the lid and Refrigerated scooper holder are removable

Carpi Care kit & Carpi Clean kit

Cylinder Capacity
Capacity of each Cylinder kg 1,5 kg min - 2,5 kg max
Electrical
Condenser Vertical version is water-cooled. Horizontal version is air-cooled.
Hz 50-60 Hz
Ph 1 Ph
Volt 220-240 Volts
Fuse Size A 13 A
Rated Power Input kW 2,5 kW
Dimensions
Dimension at base W x D x H cm Vertical version: 45x88x100 cm; Horizontal version: 75x65x100 cm
Net Weight kg Vertical version 180 kg; Horizontal version 196 kg.
Note
Note Synthesis 2 is produced by Carpigiani with Quality System Certificate UNI EN ISO 9001. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary.
