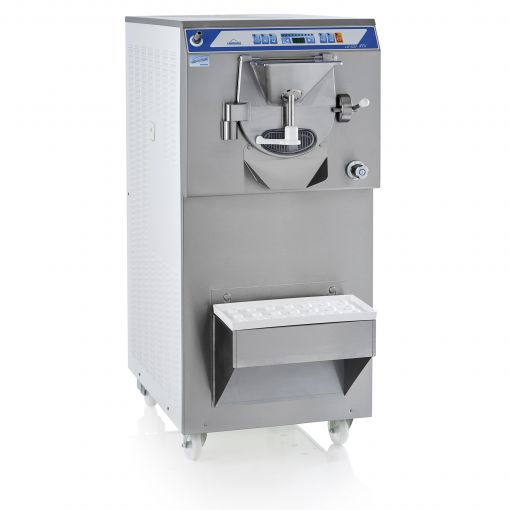

LB 502 RTX

20qt batch freezer for Classic Ice Cream

A classic Carpigiani machine designed to create the best Ice Cream, Sherbet, Water Ice & Premium Custard for the start up Ice Cream business.


Patented Hard-O-Dynamic technology achieves desired consistency with any batch size.

Electronic controls automatically maintain product until extraction begins.

POM Beater resists extreme hot and cold temperatures and includes auto-adjusting scrapers for complete extraction.


Automatic Control provides unparalleled flexibility and ease of operation.

Audible alarm signals when product achieves desired consistency.

Maximized extraction results in minimal flavor overlap with less frequent rinsing.

Operations are done standing up for user comfort.

Optional shelf mat designed to hold trays & tubs during extraction is available.


Lowest power consumption in the industry while providing some of the quickest batch freezing times.

Self-adjusting scraper can be replaced without needing a new beater.

Air-cooling option available (on LB 302 RTX and LB1002 RTX models)


Automatic defrost starts during power outages to avoid damage to beater.

Rounded corners reduce risk of injury to operator.


Built-in faucet with flex hose makes cleaning fast and easy.

Removable extraction chute for easy cleaning.

Scotch-Brite treated steel is resistant to stains and fat residues.

Ask your Carpigiani dealer for the “Carpi Care Kit” to best maintain equipment.

Technical Characteristics
Beater 3 H.P. Drive Motor, Unibody with Delrin Blades
Cylinder Capacity
lt 20 quarts (with beater)
Condenser Air or Water
Hz 60
Ph 1 or 3
Volt 208-230
Fuse Size A 50 Amps/40 Breaker Size; 39/31 Running Amps; 1 Feeder
Refrigerant R-449A
Dimension at base Depth cm 101.6 cm (40 in) - water cooled version
Dimension at base Height cm 140 cm (55 in) with casters
Dimension at base Width cm 61 cm (24 in)
Note All specifications mentioned must be considered approximate. Carpigiani reserves the right to modify, without notice, all parts deemed necessary.
