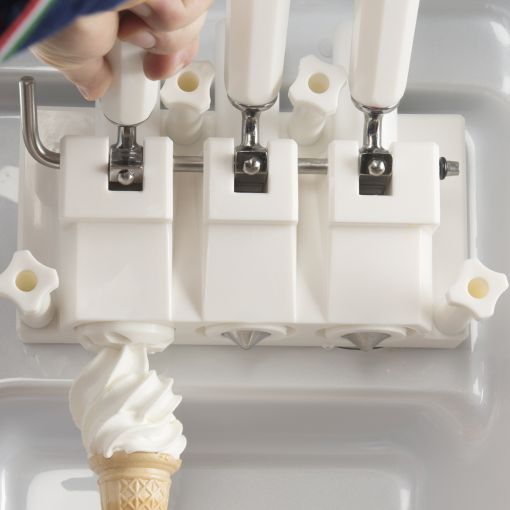

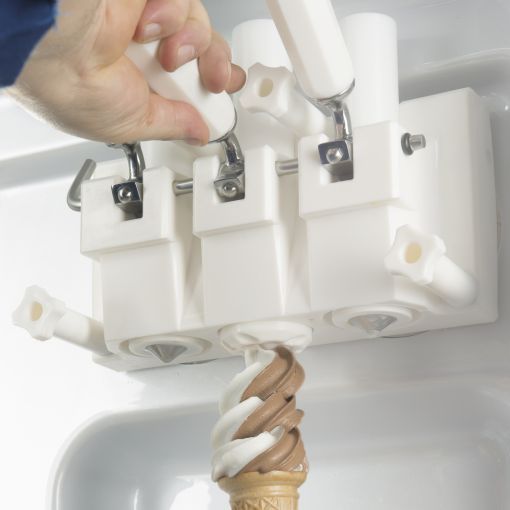

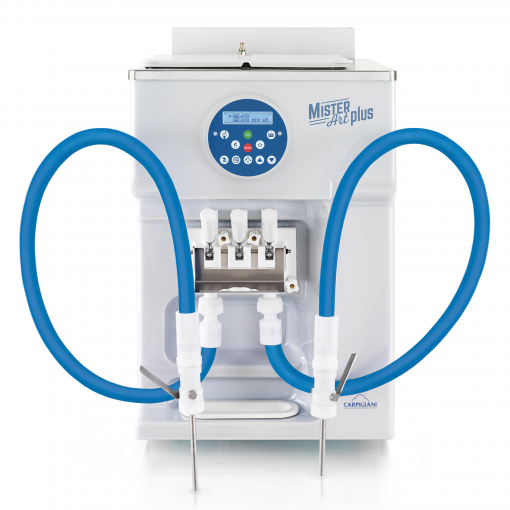

Mister Art Plus encompasses the typical gelato laboratory in one machine: the mix is pasteurized in the upper hopper while the lower cylinder freezes the soft gelato. To customize the shape of soft gelato or sorbets, you can choose from a number of nozzles.

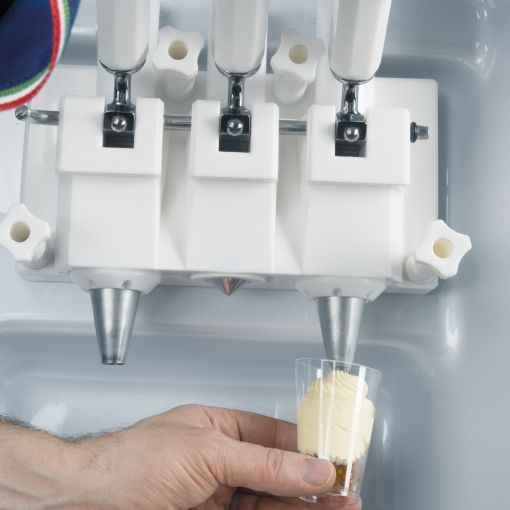

For gelato confectionery, the machine is equipped with the single-portion kit to facilitate the filling of cannoli, tartlets and small cups.
The machine comes also with a dispensing gun for quick and convenient filling of gelato cake molds and sticks.
The machine comes with 2 stainless steel nozzles for spumone gelato, mousse and Bavarian cream.
With Mister Art Plus, 485 gelato servings of 75 g and 580 sticks of 85 cc can be produced in one hour with a hopper capacity of 12 L.
Quality
Mister Art Plus can produce gelato and sorbets, create Crystal for filling large cake molds and narrow stick gelato molds, as well as gelato pastries like single portions of gelato and spumoni, and fresh pastries like mousses and Bavarian creams.
Performance
A gear pump patented by Carpigiani ensures the best structure and control of overrun. Mister Art Plus has two tanks, two motors, and two independent cylinders which produce two products of different consistency at the same time.
Convenience
Mister Art Plus's door is designed for the application of terminals to facilitate filling: 2 for gelato pastries, 2 for fresh pastries, 2 hoses with a Crystal portioning pistol (used to create two different crystal densities and to produce, for example, multi-layer cakes).
Recipe book supplied.
Savings
With Mister Art Plus, you can do your job easily and save time.
Safety
Accident prevention thanks to rounded corners.
Optional Teorema: monitoring and diagnosis via the internet for easier assistance.
Hygiene
Self-pasteurizing system to sanitize all parts of the machine that come into contact with the product.
Heated cleaning of the cylinder to simplify cleaning operations.
Brush for cleaning the hose.

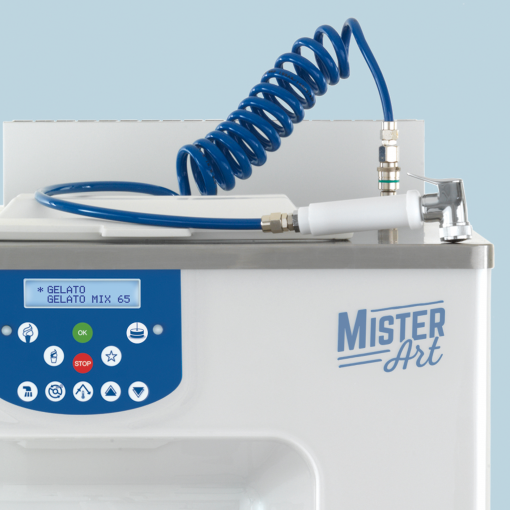

Optional Sprayer with spiral hose and quick coupling.
| Technical Characteristics | |
|---|---|
| Pump Gears | Yes |
| Tank Capacity | |
| Tank Capacity lt | 12+12 |
| Hourly production | |
| 75g Gelato portions | 485 |
| 85cc Stick treats | 580 |
| Electrical | |
| Cooling System | Air or Water** |
| Hz | 50* |
| Ph | 3* |
| Volt | 400* |
| Fuse Size A | 16 |
| Rated Power Input kW | 4,7 |
| Dimensions | |
| Net Weight kg | 225 |
| Air-cooled version | W x D x H cm | 55 x 87,5 x 89 |
| Water-cooled version |W x D x H cm | 55 x 83 x 85 |
| Note | |
| Note | * Other voltages and cycles are available with additional charge. ** Water-cooled versions available with additional charge. Production will vary depending on the ingredients used. Mister Art Plus is produced by Carpigiani according to UNI EN ISO 9001 Certified Quality System. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary. |
