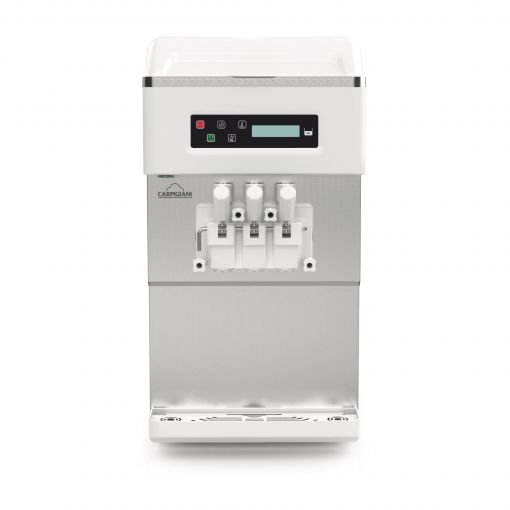

The ideal Carpigiani soft serve machine for soft gelato, sorbets and frozen yogurt.
Thanks to the Hard-O-Tronic® electronic control system, the desired consistency can be set quickly and easily. Thanks to the independent cylinders, products of different consistencies can be frozen simultaneously. The system can either be pump-fed or gravity-fed, with overrun adjustment even with a full hopper. Customization with mixed system also possible: 1 pump feed and 1 gravity feed.
It is equipped with the Star Door that allows fitting the 18 different nozzles that can be purchased individually or in the optional kit. The machine can be equipped with the Winter Door, which allows the use of two completely separate cylinders by inhibiting the middle part.
The machine is air-cooled, and thanks to the rear chimney it is possible to optimize installation space and place several machines side by side. With the automatic self-pasteurization system, you can choose when to wash the machine and schedule the next washing at a maximum interval of 42 days.
Performance and Quality
Star Door
Hard-O-Tronic®
Removable High efficiency beater in POM
Direct expansion cylinder
Download the catalogue to discover which optional settings are compatible.
Convenience
Tank agitator with adjustable speed
Adjustable dispensing speed
Self Closing Automatic lever closing system
Modular programmable speed.
Scan the QR Code on the front of the machine to access the most up to date equipment information: Instruction Manual, Carpi Care kit & Carpi Clean kit.
Savings
New high-performance electric gear motors and condensers.
Safety
More operational safety and more control during production.
Hygiene
Easy cleaning, guaranteed hygiene.
| Technical Characteristics | |
|---|---|
| flavour | 2+1 |
| Mix Delivery System | Pump or Gravity |
| Cylinder Capacity | |
| lt | 1,35 |
| Tank Capacity | |
| Tank Capacity lt | 5+5 pump version; 8+8 gravity version. |
| Hourly production | |
| 75 gr portions | 320* portions for pump version; 268* for gravity version. |
| Electrical | |
| Cooling System | Air |
| Volt/Hz/Ph | 230/50/1 (other voltages and cycles available upon request) |
| Fuse Size A | 20 |
| Rated Power Input kW | 3,0 |
| Refrigerant | |
| Refrigerant | R452 (alternative solutions available) |
| Dimensions | |
| Net Weight kg | 190 pump version; 180 gravity version. |
| Note | |
| Note | *production capacity depends on the mix used and the room temperature. T are produced by Carpigiani with UNI EN ISO 9001 Certified Quality System. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary. |
